| No.399, Gangwen Road, Fengxian District Shanghai, China 201413 |
| |
|
|
|
| http://www.ittc-lab.com |
|
|
|
|
| Test Report |
|
Test Report No.:26987885 |
|
| Issue Date:17/12/18(DD/MM/YY) |
| |
Client Information: |
|
|
|
| |
Supplier No. |
| : | S1032 |
|
|
|
|
|
|
|
|
Client Company Name | : | YUTAI METAL MANUFACTORY CO., LTD. |
| ||
Contact Address | : | Xing Cun road, South project area, Chang Cheng town, Zhu Cheng city, |
| ||
|
|
| Shan dong province |
| |
Client Contact Person | : | Carl Peng |
|
| |
IKEA Contacts Person | : | / |
|
| |
Sample Receive Date/Test Start Date : | 07/12/18 |
| |||
Sample information by applicant: |
|
| |||
Article No. |
| : | 100159 |
|
|
Article Name |
| : | SCREW MC6S M6x65 8.8 ZN.PL |
| |
Article Date Stamp | : | 2018-12-3 |
|
| |
Material Producer | : | YUTAI |
|
| |
Material Description | : | Fe |
|
| |
Material Batch Number/Production Date : | 2018-12-3 |
| |||
Test Type |
| : | Verifying Test |
| |
Identification Code | : | 100159 |
|
| |
fitting number | : |
| 100159 |
|
|
Base Material | : |
| Fe |
|
|
Surface Treatment : |
| ZN1 5A1 |
|
| |
Test Part : |
|
| DIM,HVT,TTM |
| |
fitting name : |
|
| SCREW MC6S M6x65 8.8 ZN.PL |
| |
Sample Description | : | 100159; |
|
| |
Additional Information | : | / |
|
|
Information By Lab:/
Test Method:

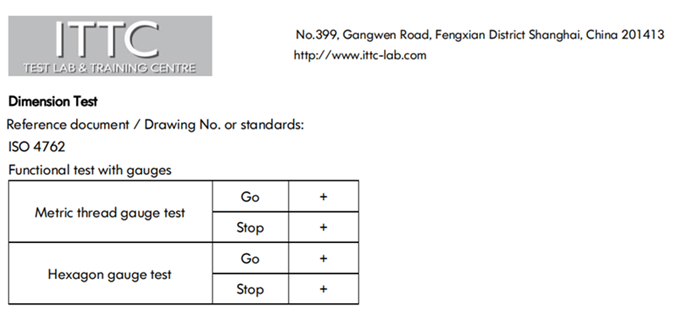

Dimension test; including Go and Stop gauge test.
No.399, Gangwen Road, Fengxian District Shanghai, China 201413 |
Vickers hardness test; ISO 6507-1

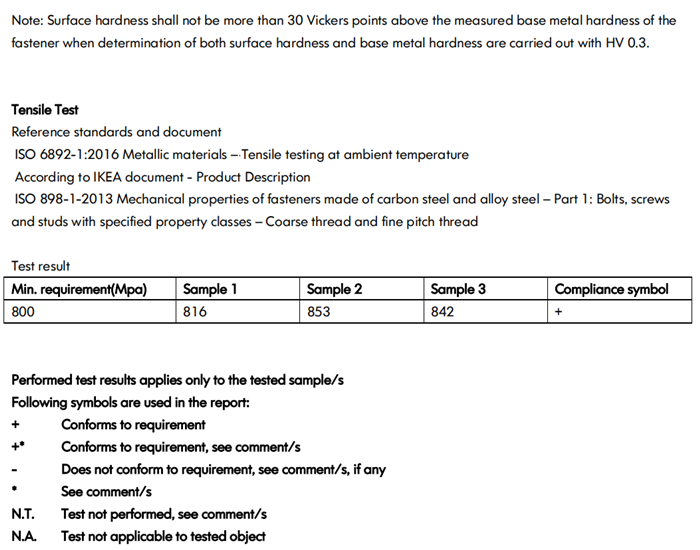

Tensile test; ISO 6892-1.
Mindy Pan
ITTC Deputy General Manager
The test results exclusively relate to the samples under test.
The test report shall not be reproduced except in full, without the written approval of our laboratory.

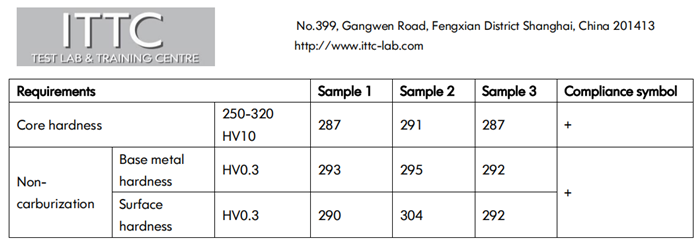

Vickers Hardness Test
Reference standards and document
ISO 6507-1: 2018 Metallic materials – Vickers hardness test- Part1: Test method According to IKEA document -Product description
ISO 898-1-2013 Mechanical properties of fasteners made of carbon steel and alloy steel – Part 1: Bolts, screws and studs with specified property classes – Coarse thread and fine pitch thread
